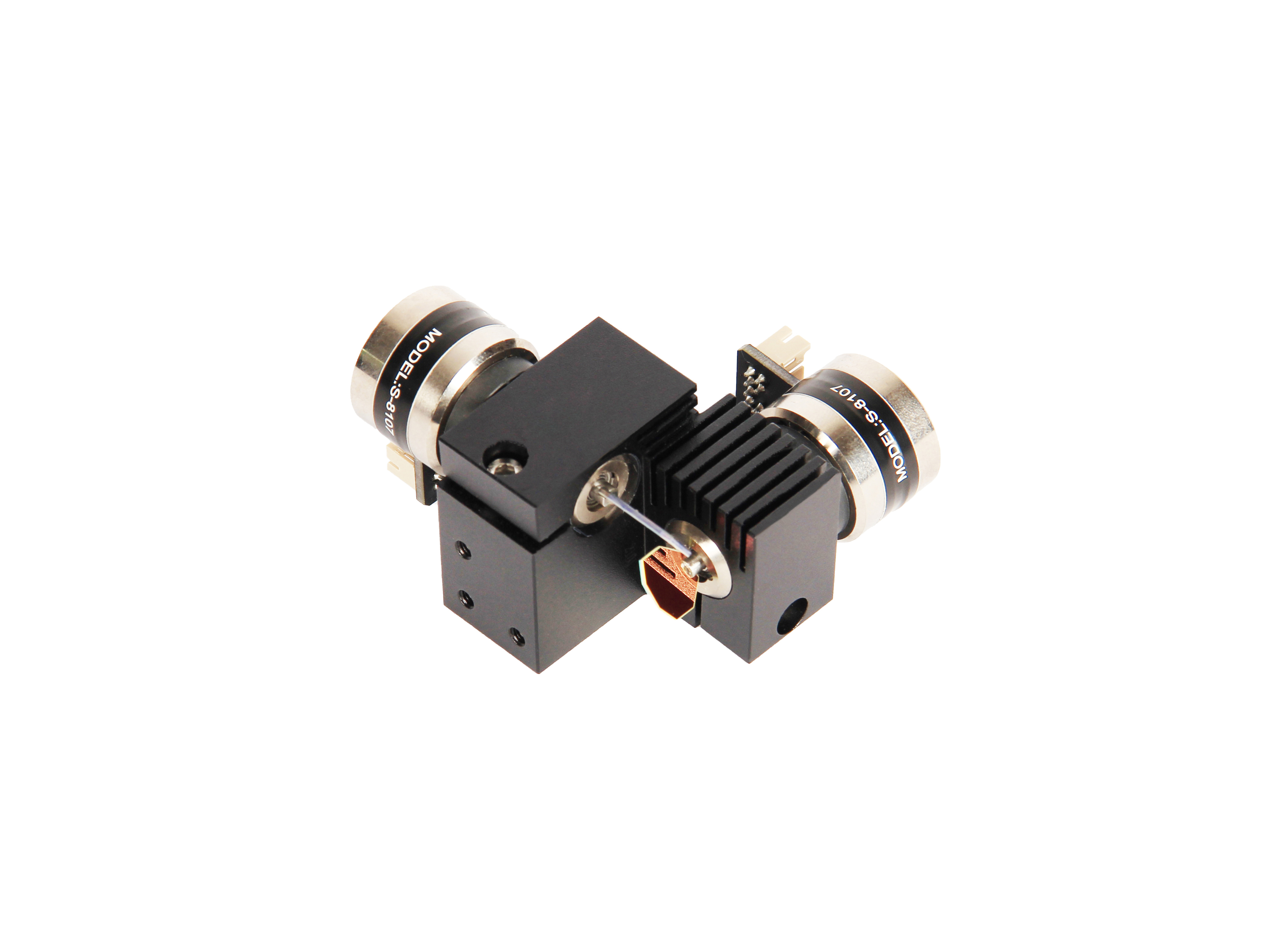

Model
|
SS8107M
|
|
Aperture size( mm)
|
3
|
5
|
7
|
|
Max. scan angle
|
±20°
|
±12.5°
|
|
Max. laser power（W）
|
Nd:YAG@1064 nm
|
-
|
-
|
100
|
|
CO2
|
-
|
-
|
50
|
|
Small step response time（1）（ms）
|
0.15
|
|
Tracking error（ms）
|
0.1
|
|
Marking speed(2)（m/s）
|
-
|
-
|
4
|
|
Positioning speed(2)（m/s）
|
-
|
-
|
15
|
|
Writing speed(3)（cps）
|
good quality
|
-
|
-
|
1000
|
|
high quality
|
-
|
-
|
800
|
|
Zero drift (μRad./℃)
|
<15
|
|
Scale drift ( ppm/℃)
|
<50
|
|
Long-term drift over 8 hours ( mrad.)
|
<0.6
|
|
Linearity（4）
|
≥99.90%
|
|
Repeatability（μRad.）
|
<8
|
|
Max. RMS current (A/axis)
|
2
|
|
Peak current (A)
|
10
|
|
Input signals
|
DC±5V, ±10V（analog signal）
|
|
Input power
|
±24 VDC，Max. 3.5A/axis
|
|
Operating temperature
|
25℃±10℃
|
|
Weight(kg)
|
0.4
|
|
Application
|
Laser mark
Mark-on-the-fly
Laser imaging
Laser therapy
Research&science
|
|
- All angles are in mechanical degrees.
|
|
- All above specifications are applicable after 60 sec warm-up.
|
|
（1）Settling to 1% of full scale with Min. Y mirror which the scanner can carry.
|
|
（2）With F=160mm lens.
|
|
（3）With F=160mm lens，mark 1mm height SHX font characters(including letters and digits)
|
|
（4）Within ±20° optical angle.
|
