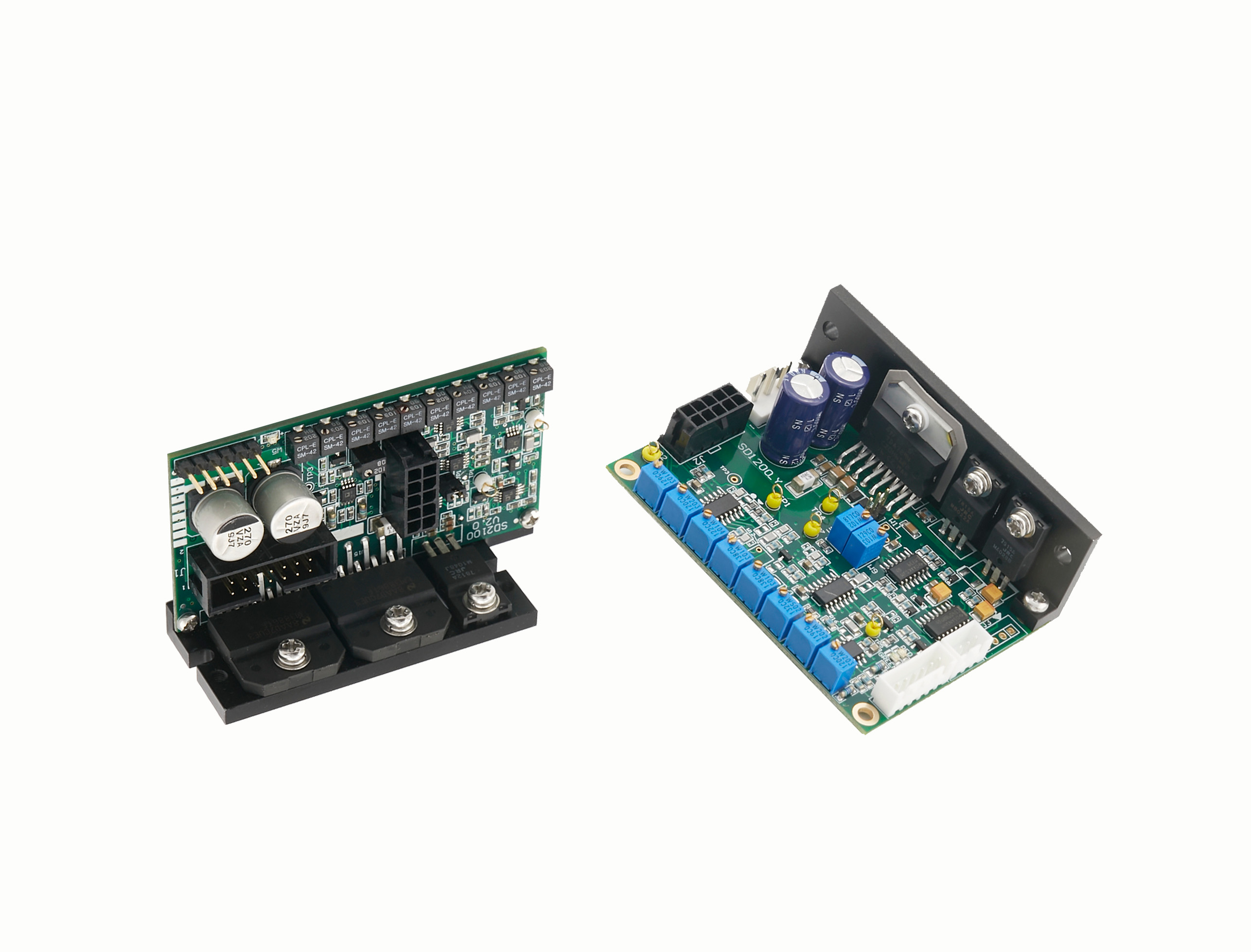

Model

SD1200

SD2100

Input power supply

Default

±24VDC@3.5A/axis max.RMS

±15VDC@3.5A/axis max.RMS

Option

±15VDC@3.5A/axis max.RMS

±24VDC@3.5A/axis max.RMS

Analog signal input resistance

Single end signal input

10K±1%Ω

10K±1%Ω

Differential signal input

20K±1%Ω

20K±1%Ω

Position signal output resistance

1K±1%Ω

4.7K±1%Ω

Analog signal input range

±5V/±10V

Position signal output scale factor

0.5V/°

0.5V/°

Position signal input scale factor

0.5V/°±10%
(Adjustable by potentiometer W5)

0.5V/°±10%
(Adjustable by potentiometer W5)

Operating temperature

0-40℃

Driver board dimensions

80mm*60mm*32.3mm

74.5mm*44.5mm*26.5mm
