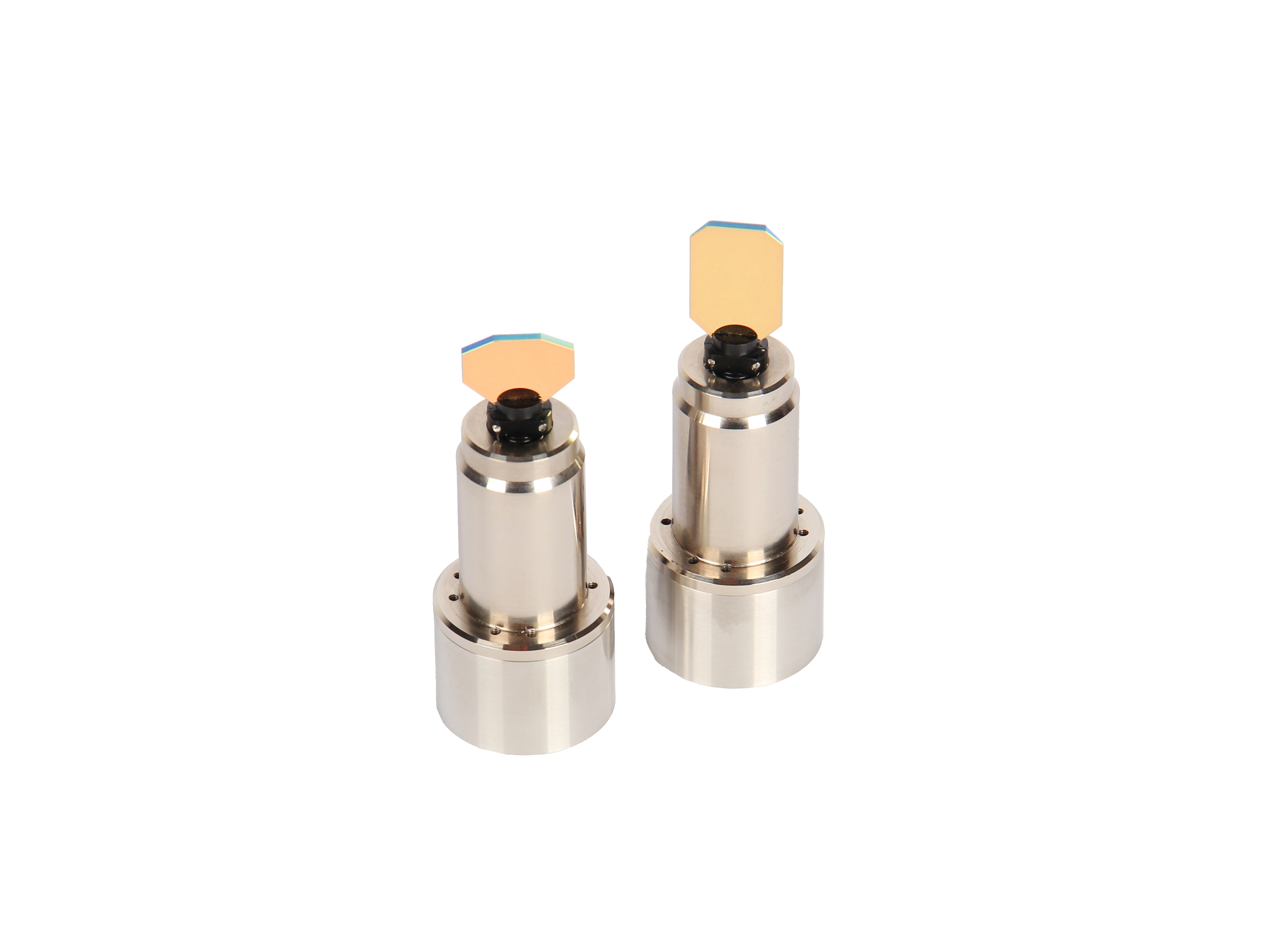

S-9210 Moving Magnet Capacitive Position Detector Galvanometer Scanner

Your current location : Home > Products > Galvo Scanners

product name :	S-9210 Moving Magnet Capacitive Position Detector Galvanometer Scanner
product model :	S-9210
Product description :	S-9210 galvanometer scanner is one of the fastest products in the new generation series.Higher torque and lower drift parameters as compared to S-9xxx products. S-9210 supports 9mm and 10mm apertures. This scanner can be combined with a driver board to build a single-axis system. At present Sunny Technology offers two types of driver boards:SD-1000 and SD-2000.

Applications Benefits

S-9210 galvanometer scanner is one of the fastest products in the new generation series. S-9xxx series is characterized by higher speed, higher torque and lower drift parameters as compared to TSH9xxx products. S-9210 supports 9mm and 10mm apertures.

This scanner can be combined with a driver board to build a single-axis system. At present Sunny Technology offers two types of driver boards: SD-1000 and SD-2000.

2D systems with the house of this scanner

economy-budget scanners with the same apertures

Model	S-9210
Aperture size( mm)	10,12
Max. scan angle	±12.5°
Small step response time（1）（ms）	0.22
Tracking error（ms）	0.12
Rotor Inertia, g*cm2 ,±10%	0.25
Torque constant, dyne·cm/amp,±10%	0.7*10⁵
Max. RMS current (A/axis)	2.5
Peak current (A)	15
Zero drift (μRad./℃)	<15
Scale drift ( ppm/℃)	<50
Linearity（2）	≥99.90%
Repeatability（μRad.）	<8
Long-term drift over 8 hours ( mrad.)	<0.5
Operating temperature	25℃±10℃
Weight（without cables）（g）	125
- All angles are in mechanical degrees.
- All above specifications are applicable after 60 sec Power on.
（1）Settling to 1% of full scale with Min. Y mirror which the scanner can carry
（2）Within ±20° optical angle.
